Read fiber jumper

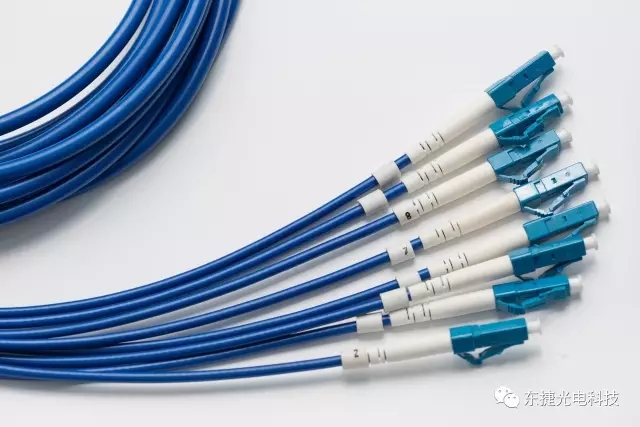

Optical Fiber Patch Cord/Patch Cable/Patch Lead/Jumper, also known as optical fiber connector, is installed on both ends of the optical fiber connector plug, used to realize the optical path active connection. The fiber jumper is similar to the coaxial cable, but there is no mesh shield. The center of the fiber jumper is the light transmitting glass core. In multimode fiber, the diameter of the core is 50 m~65 m, roughly the same as the thickness of the human hair. The diameter of the single-mode fiber core is 8 m~10 M. A glass envelope with low refractive index is surrounded by the core to keep the fiber in the core. And then there's a thin plastic coat out there to protect the envelope.

Optical fiber jumper products are widely used in communication room, fiber to home, local area network, optical fiber sensor, optical fiber communication system, optical fiber connection transmission equipment, national defense combat readiness, etc.. It is suitable for CATV network, telecommunication network, computer optical fiber network and optical testing equipment. Next, let's talk about Gigabit fiber jumpers and Gigabit fiber jumpers that are common in practical applications.

When measuring the performance of the network, people tend to think that the fiber jumper only plays a secondary role. However, in the high quality network cabling system, optical fiber jumper is one of the factors that can affect the performance of the network. An optical fiber jumper with poor transmission performance leads to a sharp decline in system performance. Perhaps using low quality jumpers in the initial installation process can reduce the cost of the entire network cabling system. But doing so can compromise the quality and reliability of the network, and ultimately allow the user to pay more for the entire system.
Gigabit fiber jumper is Gigabit rate transmission, Gigabit fiber jumper is Gigabit transmission rate, and net cable and Gigabit network cable is the same reason. 000 Gigabit fiber jumper and Gigabit fiber jumper in the same broadband, 10000 megabytes of transmission distance farther, and in the same distance, million megabytes support bandwidth is also greater.In order to meet the needs of the application of Ethernet, there are many types of optical fiber jumper, according to different environmental requirements, different collocation can be sheathed (PVC, OFNP, flame retardant low smoke halogen-free LSZH), different network requirements, can be different types of collocation of fiber end (APC, UPC, PC at the end has been basically out of the market). So in the description of an optical fiber jumper, requires a detailed description of its transmission type (single-mode, multimode), both ends of the connector type (ST, SC, LC, FC, MTRJ etc.), end type (APC, UPC) structure, core number (single core and multi-core), length (1m, 2m, etc.) flame retardant sheath (PVC, OFNP, LSZH degree), and the light source also includes two types of LED and laser light sources.

At the same time, the company supports a variety of fiber optic jumper types with low cost and high performance, providing a wide range of customized products, such as fiber connector, length, color, fiber grade, specifications, materials, packaging, etc..
