Back to list Stress Sensing Cable
Note: The outer sheath material, color and printing information of the optical cable can be customized according to the requirements of customers

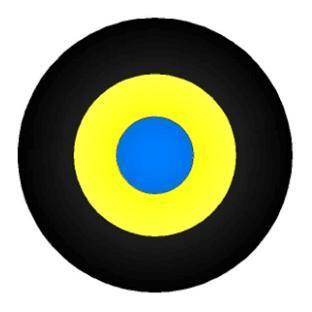

From inner to outer:

Fiber0.9mm tight-buffered×1core

Aramid yarn1×1100D

Outer sheath: TPU.

  • Cable performance
  • Application
  • Fiber properties
  • Color-coded
  • Other information
Cable performance

Cable type

Unit

DJ-GYFJU-1S

Outer diameter of armored pipe

mm

1.20±0.10



Aramid yarn

mm

3.00±0.20



Braid size

/

PVC

LSZH

TPU



Outer diameter of sheath

-20~+70

-40~+85

-40~+90



Sheath material

Kg/km

10



Temperature range

mm

Dynamic20D Static10D



Cable weight

N

Long term200 Short term300



Bending radius

N/10cm

Long term400 Short term500


Application
anti-rat bite anti-twist
oil field Tensile
wind energy the pipeline
world direct burial
oil tank Overhead
subway, tunnel water blocking
coal mine fire protection
Fiber properties

Fiber size

mm

0.9±0.05

Inner sheath material

/

 HYTREL


Color-coded

1

2

3

4

5

6

7

8

9

10

11

12

Blue

Orange

Green

Brown

Gray

White

Red

Black

Yellow

Purple

Pink

Dark green
