Back to list Temperature sensing armored optical cable 3.0mm-single core
Note: The outer sheath material, color and printing information of the optical cable can be customized according to the requirements of customers

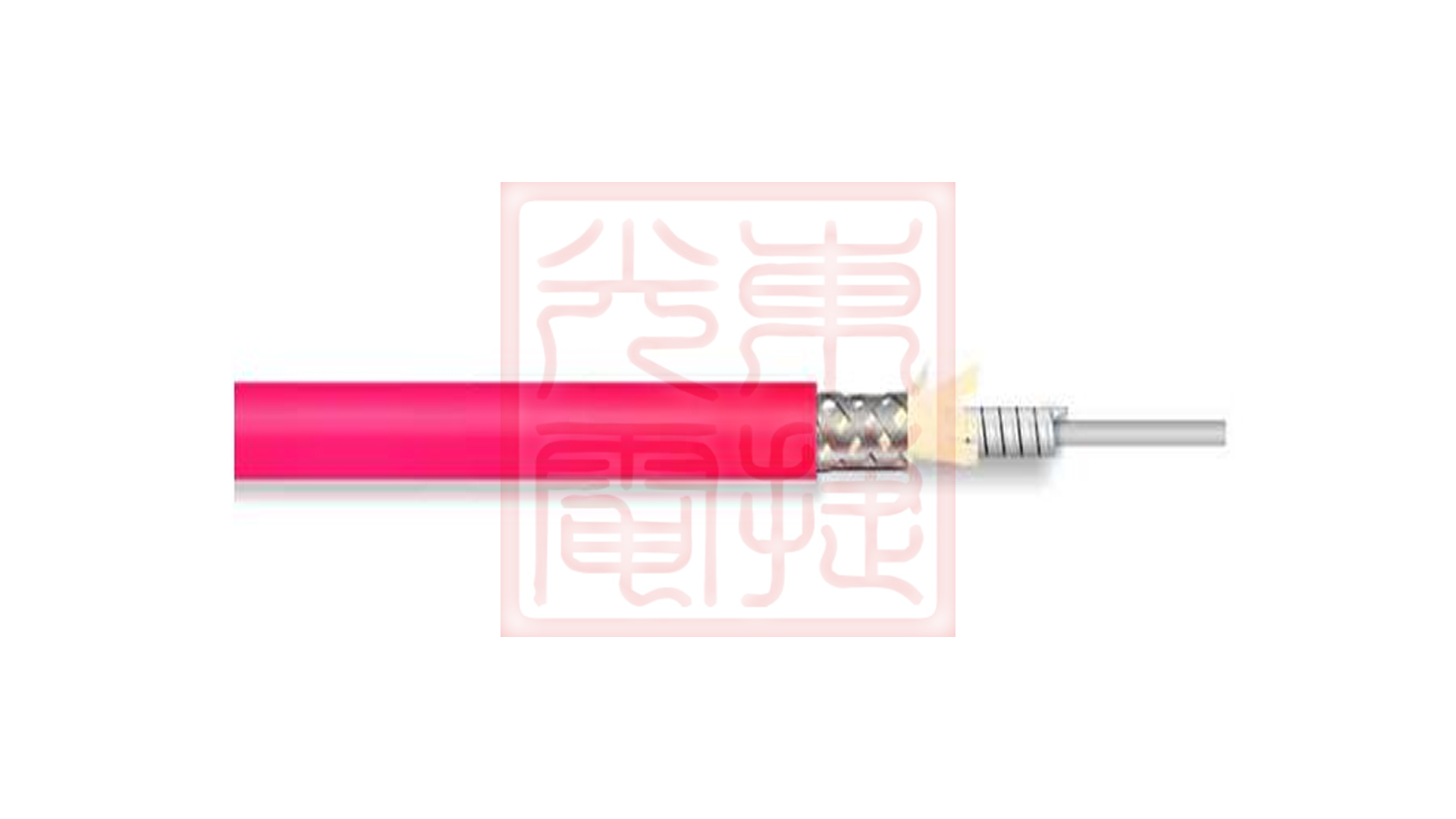

From inner to outer:

Optical fiber:0.6/0.9mm tight-packed optical fiber x 1 core;

Spiral steel tape armor:OD 1.7mm;

Aramid fiber:2 strands×1100D;

Metal braided mesh:3(6)×16 ingots;

Outer sheath of optical cable: PVC/LSZH.

  • Cable performance
  • Application
  • Fiber properties
  • Color-coded
  • Other information
Cable performance

Cable type

Unit

DJ-GYFJK(B)V-1S

Outer diameter of armored pipe

mm

1.70±0.10



Aramid yarn

Detex

1100



Braid size

mm

1.70±0.10



Outer diameter of sheath

mm

2.85±0.10



Sheath material

/

PVC

LSZH





Temperature range

-20~+70

-40~+85





Cable weight

Kg/km

16



Bending radius

mm

Dynamic 20D Stastic10D



MRDT

N

Long term 200 Short term 400



Crush

N/10cm

Long term 3000 Short term5000


Application
anti-rat bite anti-twist
oil field Tensile
wind energy the pipeline
world direct burial
oil tank Overhead
subway, tunnel water blocking
coal mine fire protection
Fiber properties

Cable type

Unit

DJ-GYFJKV-1S

Fiber size

mm

0.25±0.05

Color-coded

1

2

3

4

5

6

7

8

9

10

11

12

Blue

Orange

Green

Brown

Gray

White

Red

Black

Yellow

Purple

Pink

Dark green
