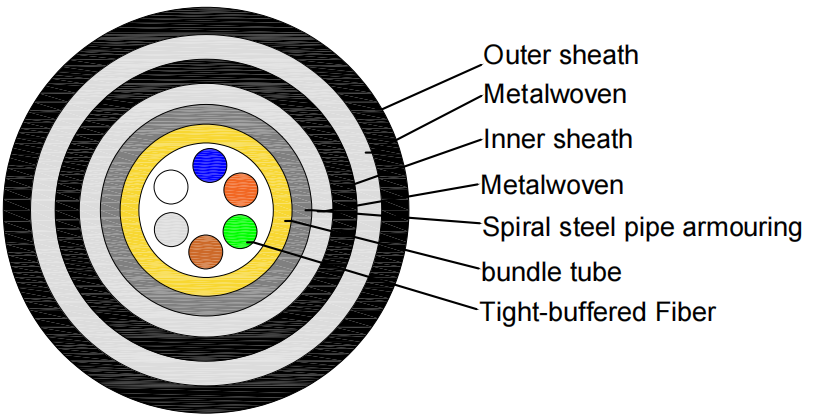

Optical fiber:0..9mm tight-packed optical fiber x 2 cores;
Cable core wire: Spiral steel tape armor: OD 8.0mm;
Aramid fiber:4 strands×1100D;
Metal braided mesh:3(6)×16 ingots;
Outer sheath of optical cable: TPU for outdoor use.
|
Cable type |
Unit |
DJ-GYFJK(B)V-2S |
|||
|
Fiber size |
mm |
0.90±0.05 |
|
||
|
Inner sheath material |
/ |
PVC / LSZH / HYTREL / NYLON |
|
||
|
Outer diameter of armor pipe |
mm |
8.00±0.30 |
|
||
|
Aramid fiber |
Detex |
1100 |
|
||
|
Braid size |
mm |
8.30±0.30 |
|
||
|
Sheath outer diameter |
mm |
10.50±0.50 |
|
||
|
Outer sheath material |
/ |
polyvinyl chloride (PVC) |
Low Smoke Zero Halogen (LSZH) |
Polyurethane (PU) |
|
|
Temperature range |
℃ |
-20~+70 |
-40~+85 |
-40~+90 |
|
|
Cable weight |
Kg/km |
120 |
|
||
|
Bending radius |
mm |
Dynamic 20D Static 10D |
|
||
|
Tensile |
N |
Long-term 200 Short-term 400 |
|
||
|
Crush |
N/10cm |
Long term 3000 Short term 5000 |
|
||
|
Anti-rat bite | √ |
|
Anti-twist | √ |
|
Oil field |
|
Tensile | √ | |
|
Wind energy | √ |
|
The pipeline | √ |
|
Perimeter | √ |
|
Direct burial | |
|
Oil tank |
|
Overhead | ||
|
Subway, tunnel |
|
Waterproof | ||
|
Coal mine |
|
Fireproof | √ |
|
Cable type |
Unit |
DJ-GYFJK(B)V-2S |
|
|
Fiber size |
mm |
0.90±0.05 |
|
|
Inner sheath material |
/ |
PVC / LSZH / HYTREL / NYLON |
|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
Blue |
Orange |
Green |
Brown |
Gray |
White |
Red |
Black |
Yellow |
Purple |
Pink |
Dark green |
|
|
|
|
|
|
|
|
|
|
|
|
|
