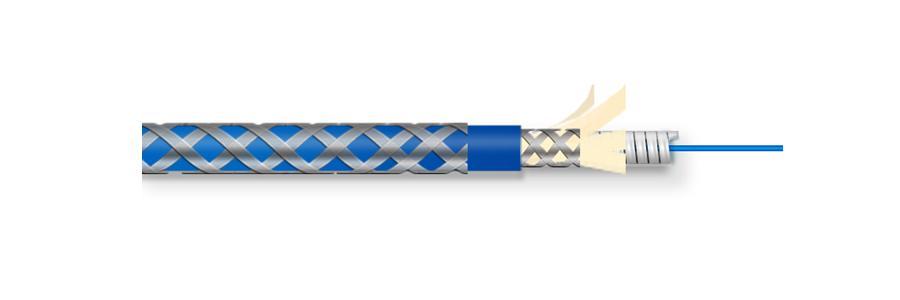

Optical fiber:0.6/0.9mm tight-buffered optical fiber x 1 core;
Spiral steel tape armor: OD 1.70mm;
Aramid fiber: OD 1.80mm;
Metal braided mesh:3(6)×16;
Outer sheath of optical cable: polyvinyl chloride PVC;
Copper mesh braid: OD 3.80mm.
|
Cable model |
unit |
DJ-GYFJK(B)V(B)-1S |
|||
|
Outer diameter of armor pipe |
mm |
1.70±0.10 |
|
||
|
Aramid fiber |
Detex |
1100 |
|
||
|
Weaving size |
mm |
2.10±0.10 |
|
||
|
Sheath Outer Diameter |
mm |
3.50±0.10 |
|
||
|
Copper mesh weaving |
mm |
3 .80±0.10 (nickel-plated copper wire) |
|
||
|
sheath material |
/ |
polyvinyl chloride (PVC) |
Low Smoke Zero Halogen (LSZH) |
Polyurethane |
|
|
Working temperature |
℃ |
-20~+70 |
-40~+85 |
-40~+90 |
|
|
Cable Weight |
Kg/km |
25 |
|
||
|
Bend Radius |
mm |
Dynamic 20D Static 10D |
|
||
|
tensile strength |
N |
Long-term 200 Short-term 400 |
|
||
|
Compressive strength |
N/10cm |
Long term 3000 Short term 5000 |
|
||
|
Anti-rat bite | √ |
|
Anti-twist | √ |
|
Oil field |
|
Tensile | √ | |
|
Wind energy |
|
The pipeline | √ | |
|
Perimeter |
|
Direct burial | ||
|
Oil tank | √ |
|
Overhead | |
|
Subway, tunnel | √ |
|
Waterprof | |
|
Coal mine |
|
Fireproof | √ |
| Cable type | Unit |
DJ-GYFJK(B)V(B)-1S |
|||
| Fiber size | mm | 0.60/0.90±0.05 | |||
| Inner sheath material | / | PVC / LSZH / HYTREL / NYLON | |||
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
Blue |
Orange |
Green |
Brown |
Gray |
White |
Red |
Black |
Yellow |
Purple |
Pink |
Dark green |
|
|
|
|
|
|
|
|
|
|
|
|
|
