Back to list DJ-GYFHKV-1~12S 1-12 core mini sensing armored optical cable for MPO

The advantages of 1-12 core mini armored optical cable MPO dedicated optical cable include:

1. High strength: The armored optical cable has high strength and can withstand external tension and pressure, improve the tensile performance of the optical fiber, and prevent the optical fiber from being accidentally broken.

2. Waterproof and moisture-proof: The outer layer of the armor is made of waterproof and moisture-proof material, which can effectively prevent moisture and water from intruding and protect the optical fiber inside the optical cable from being affected.

3. Strong durability: The armored optical cable has high wear resistance and corrosion resistance, can maintain long-term stability and reliability, and reduce the frequency of maintenance and replacement.

4. Easy installation: The armored optical cable is soft and easy to bend, which is easy to install and wire, and can adapt to a variety of environments and site requirements.

5. Miniaturization: The mini armored optical cable MPO dedicated optical cable adopts a 12-core design


Note: The outer sheath material, color and printing information of the optical cable can be customized according to the requirements of customers

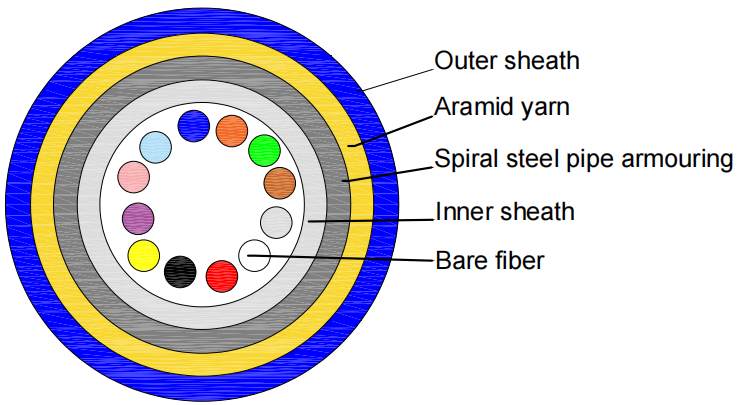

From inner to outer:

Fiber0.25mm colored×1~12 cores

Micro-beam tubeOD 1.3mm

Spiral Steel pipe amouringOD 2.1mm

Aramid yarn4×1100D

Outer sheathPVC.


  • Cable performance
  • Application
  • Fiber properties
  • Color-coded
  • Other information
Cable performance

Cable type

Unit

DJ-GYFHKV-1~12S

Material of microbeam tube

/

LSZH

Diameter of microbeam tube

mm

1.30±0.10

Outer diameter of armored pipe

mm

2.10±0.10

Aramid yarn

Detex

1100

Outer diameter of sheath

mm

3.00±0.10

Sheath material

/

PVC

LSZH

TPU

Temperature range

-20~+70

-40~+85

-40~+90

Cable weight

Kg/km

22

Bending radius

mm

Dynamic 20D Static 10D

Tensile

N

Long term200 Short term400

Crush

N/10cm

Long term3000 Short term5000


Application
Anti-rat bite Anti-twist
Oil field Tensile
Wind energy The pipeline
Perimeter Direct burial
Oil tank Overhead
Subway, tunnel Waterproof
Coal mine Fireproof
Fiber properties

Cable type

Unit

DJ-GYFHKV-1~12S

Fiber size

mm

0.25±0.01

Color-coded
No 1 2 3 4 5 6 7 8 9 10 11 12
Red Green Blue Yellow White Grey Brown Violet Aqu Black Orange Pink
