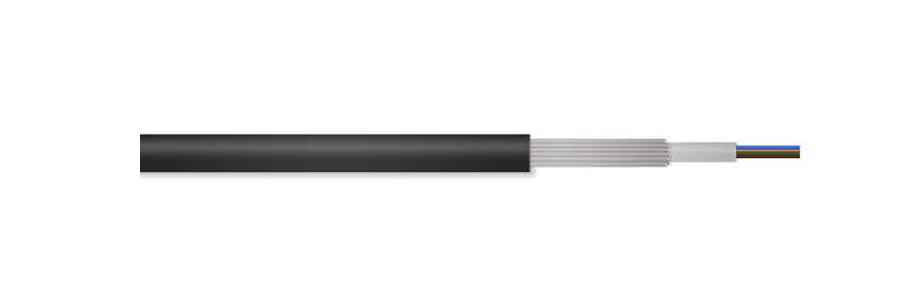

Back to list Stress Sensing-Steel Rope Sensing Optical Cable
Note: The outer sheath material, color and printing information of the optical cable can be customized according to the requirements of customers


The structure from inside to outside is:

Fiber: Corning 4-core multimode sensing fiber 50/125, 62.5/125

Oil-free seamless pipe:OD 1.6mm, single side wall thickness 0.20mm;

Stainless steel:304

Stranded steel wire:OD 0.5mm;

Outer sheath of optical cable: Black flame retardant LSZH.


  • Cable performance
  • Application
  • Fiber properties
  • Color-coded
  • Other information
Cable performance

Cable type

Unit

DJ-GC-JHGS-G-4S

Outer diameter of seamless pipe

mm

1.60±0.10



Stranded steel wire

mm

0.50±0.05



Sheath outer diameter

mm

4.00±0.20



Outer sheath material

/

polyvinyl chloride (PVC)

Low Smoke Zero Halogen (LSZH)

Polyurethane (PU)



 Temperature range

-20~+70

-40~+85

-40~+90



Cable weight

Kg/km

27



Bending radius

mm

Dynamic 40D Static 20D



Tensile

N

Long-term 1100 Short-term 150



Crush

N/10cm

Long term 960 Short term 2000


Application
Anti-rat bite Anti-twist
Oil field Tensile
Wind energy The pipeline
Perimeter Direct burial
Oil tank Overhead
Subway, tunnel Waterproof
Coal mine Fireproof
Fiber properties

Cable type

Unit

DJ-GC-JHGS-G-4S

Fiber size

mm

0.25±0.01

Inner sheath material

/

PVC / LSZH / HYTREL / NYLON



Color-coded

1

2

3

4

5

6

7

8

9

10

11

12

Blue

Orange

Green

Brown

Gray

White

Red

Black

Yellow

Purple

Pink

Dark green
