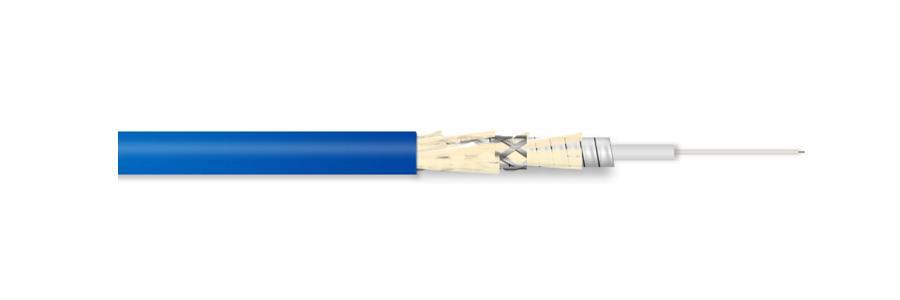

Optical fiber:0.25mm colored optical fiber x 1-4 cores; fiber paste;
PBT beam tube: 2.0mm;
Spiral steel tape armor:OD 2.8mm;
Aramid fiber:1 strand × 1100D;
Metal braided mesh:3(6)×16 ingots;
Aramid fiber:4 strands × 1100D;
Outer sheath of optical cable: Low smoke zero halogen LSZH.
|
Cable type |
Unit |
DJ-GYFHK(B)H 1-4 S |
|||
|
Sub-cable material |
/ |
PBT |
|
||
|
Outer diameter of armor pipe |
mm |
2.80±0.10 |
|
||
|
Aramid fiber |
Detex |
1100 |
|
||
|
Braid size |
mm |
3.10±0.10 |
|
||
|
Sheath Outer Diameter |
mm |
4.8±0.10 |
|
||
|
Sheath material |
/ |
polyvinyl chloride (PVC) |
Low Smoke Zero Halogen (LSZH) |
Polyurethane |
|
|
Temperature range |
℃ |
-20~+70 |
-40~+85 |
-40~+90 |
|
|
Cable weight |
Kg/km |
35 |
|
||
|
Bending radius |
mm |
Dynamic 20D Static 10D |
|
||
|
Tensile |
N |
Long-term 400 Short-term 800 |
|
||
|
Crush |
N/10cm |
Long term 3000 Short term 5000 |
|
||
|
Anti-rat bite | √ |
|
Anti-twist | √ |
|
Oil field |
|
Tensile | √ | |
|
Wind energy |
|
The pipeline | √ | |
|
Perimeter |
|
Direct burial | √ | |
|
Oil tank |
|
Overhead | ||
|
Subway, tunnel | √ |
|
Waterproof | √ |
|
Coal mine | √ |
|
Fireproof | √ |
|
Cable type |
Unit |
DJ-GYFHK(B)H 1-4 S |
|
|
Fiber size |
mm |
0.25±0.05 |
|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
Blue |
Orange |
Green |
Brown |
Gray |
White |
Red |
Black |
Yellow |
Purple |
Pink |
Dark green |
|
|
|
|
|
|
|
|
|
|
|
|
|
