Tight fiber: OD0.6mm;
Aramid fiber:1100D;
Inner sheath of optical cable: materialPVC;
Spiral steel tape armor:ID4.5mm,OD5.3mm;
Metal braided mesh:3(6)×16Ingot,OD5.6mm;
Outer sheath of optical cable:OD7.5mm, material blackPVC.

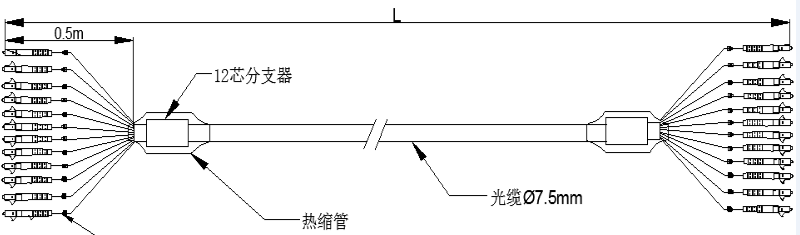

| Dongjie Optoelectronics | DJ-LC/PC-LC/PC-single-mode 12-core G652D7.5mm-Lm jumper wire |
| describe | Armored jumper with LC/PC connector, 12 cores |
| the application | FTTA |
| fiber optic cable | |
| optical fiber | 9/125um G652D Single-mode 12 cores |
| Tight fiber outer diameter | 0.6mm |
| Aramid fiber | 1100D |
| inner sheath | pvc |
| Spiral steel tape armor | ID4.5mm, OD5.3mm |
| metal braid |
