1. Indoor communication facilities (for owner who has installed integrated information box)
As the first China Telecom to FTTH residential district, your home has installed a home fiber and integrated information box. The integrated information box is located near the entrance door of your home. The installation position and appearance are shown in the following picture:
Fig. 1-1 information box installation location and appearance
Note: the red lines in the picture represent five lines (lines). The information box is installed in your home for the installation of network terminal equipment box, please do not change the installation of information box installation location, do not install other equipment, and do not store debris, so as not to affect the network speed and quality. The network equipment needs power supply. Please confirm that the electricity in the box has been introduced.
A home fiber is installed in the box to provide ultra high speed data transmission rate. Optical fiber is different from five kinds of wires and twisted pairs. It is fragile and difficult to repair. Please be careful not to bend and break.
Fig. 1-2 home fiber
Note: there may be invisible laser output in the optical fiber connector, so you should not disassemble it or look at the naked eye in order to avoid damaging the eyes.
(the following sections are applicable to owners who do not install integrated information boxes but install optical information panels)
As China Telecom's first fiber to the home (FTTH) residential district, China Telecom has provided your home with a home fiber and fiber information panel.
Example: fiber optic information panel is located in your home living room TV wall, home fiber embedding location and fiber information panel installation position example, as shown in the following picture:
Fig. 1-3 schematic diagram of embedded position of information panel and home fiber
Home light has been installed in the panel to provide ultra high speed data transmission rate. Optical fiber is different from five lines and twisted pairs. It is fragile and difficult to repair. Please be careful not to bend and break.
Fiber optic information panel is a connection facility installed in your home for access to home optical fiber and network devices, and it is also vulnerable to damage. Please do not move the installation position of the optical fiber panel during the decoration.
Fig. 1-4 schematic diagram of household light apparatus and information panel
Two, home decoration wiring method

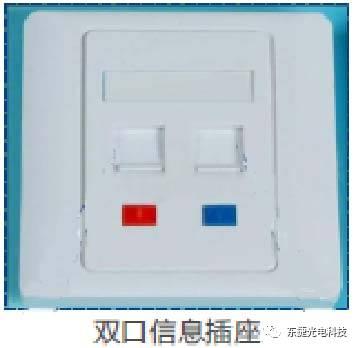

In order to meet your anytime, anywhere call, Internet, video, entertainment and other information home requirements, we recommend that you install the dual port information panel in the following position
From each information panel to the integrated information box, you need a five line (line), please do not choose the ordinary telephone line.
Each of the five lines is connected to the telephone port and the Internet port of the information panel, and the connection is as follows:
The five kinds of lines should be connected directly, and they can not be connected with each other.
In the decoration wiring, should also pay attention to the following points:
A, line as far as possible not right angle wiring, avoid to cause five kinds of line damage in the pull wire;
At least 15cm spacing should be maintained between the B, the cable and the power line to avoid the interference of AC data transmission;
C, when wearing five kinds of lines, should use PVC pipe through the network, the information panel and information box of the length of the cable at least reserved for more than 20cm;
After the D and five lines are worn out, they should be marked as each net line in the information box, and the information panel room or location of the connection information can be marked, which is convenient for later use.
Three, the acceptance of home wiring
After you have finished the construction of indoor wiring, please be sure to check and test every cable that has been laid out.
The test requires a pair of wire testers. When testing, you need to connect the main tester or the remote tester at the ends of the tested network cable.
1, the test cable is normal, then the number of the two test end will flicker from 1 to 8 simultaneously;
2, the emergence of the number of order disorder, on behalf of the wrong wiring method or cross line connection;
3, there is a light does not light, indicating that the root line is not connected;
4, if all the lights do not flash, which means that this cable has more than 4 lines there is a problem.
Note: different brands of network tester, test light meaning is different, please pay attention to refer to the test instrument instructions.
