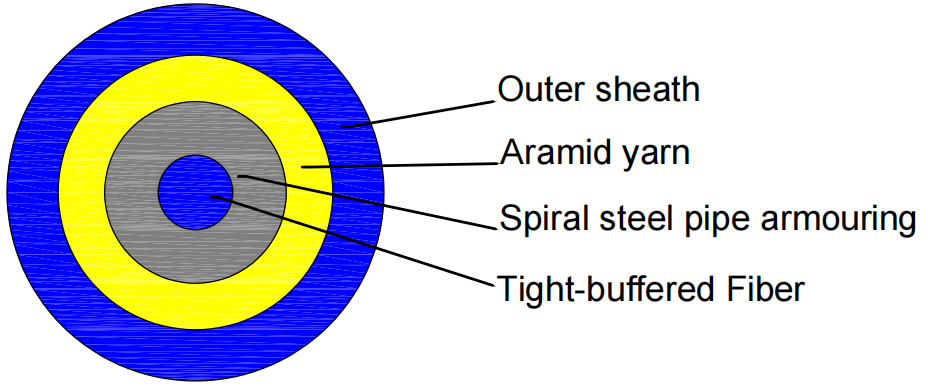

From inner to outer：
Fiber：0.6mm tight-buffered×1 core；
Spiral steel pipe armouring：OD 1.7mm；
Aramid yarn：1×1100D；
Outer sheath： PVC.
|
Cable type |
Unit |
DJ-GYFJKV-1S |
|||
|
Outer diameter of armored pipe |
mm |
1.70±0.10 |
|
||
|
Aramid yarn |
Detex |
1100 |
|
||
|
Outer diameter of sheath |
mm |
2.85±0.10 |
|
||
|
Sheath material |
/ |
PVC |
LSZH |
PU |
|
|
Temperature range |
℃ |
-20~+70 |
-40~+85 |
-40~+90 |
|
|
Cable weight |
Kg/km |
17 |
|
||
|
Bending radius |
mm |
Dynamic20D Static10D |
|
||
|
MRDT |
N |
Long term200 Short term400 |
|
||
|
Crush |
N/10cm |
Long term3000 Short term5000 |
|
||
|
Excellence rodent resistence |
√ |
|
Anti-torsional |
√ |
|
Fiber to home |
√ |
|
Tensile |
√ |
|
Horizontal wiring |
√ |
|
Duct |
√ |
|
Vertical wiring |
√ |
|
Direct-buried |
|
|
Base station stretching |
|
Overhead pipeline |
||
|
Equipment room deployment |
√ |
|
100% Waterproof |
|
|
Field deployment |
|
100% Fireproof |
√ |
|
Fiber size |
mm |
0.60±0.05 |
|
Inner sheath material |
/ |
PVC/LSZH / HYTREL / NYLON |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
Blue |
Orange |
Green |
Brown |
Gray |
White |
Red |
Black |
Yellow |
Purple |
Pink |
Dark green |
|
|
|
|
|
|
|
|
|
|
|
|
|
