Back to list 2 Cores branch flat optical cable
Note: The outer sheath material, color and printing information of the cable can be customized according to customer's requirements

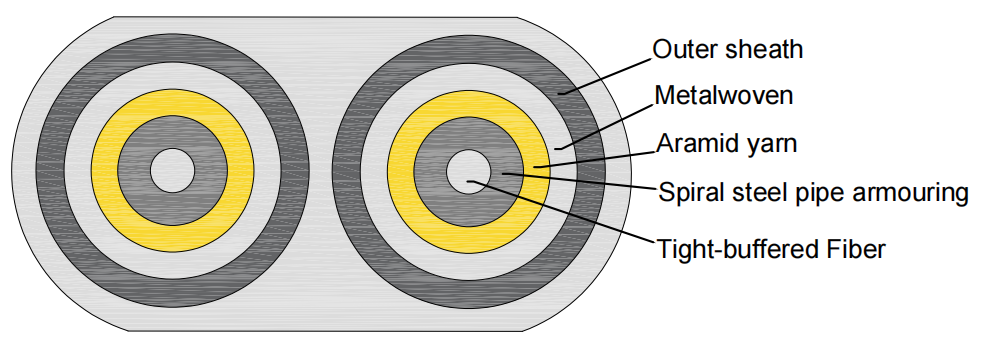

From inner to outer

Fiber0.6mm ×2 cores

Spiral steel pipe armouringOD 1.7mm

Aramid yarn4×1100D

Metal woven:3(6)×16;

Outer sheathPVC

  • Cable performance
  • Application
  • Fiber properties
  • Color-coded
  • Other information
Cable performance

Cable type

Unit

DJ-GYFJK(B)BV-2S

Outer diameter of armored pipe

mm

1.70±0.10

Aramid yarn

Detex

1100

Braid size

mm

2.10±0.10

Outer diameter of sheath

mm

4.20*7.20±0.10

Sheath material

/

PVC

LSZH

TPU

Temperature range

-20~+70

-40~+85

-40~+90

Cable weight

Kg/km

45

Bending radius

mm

Dynamic 20D Static10D

MRDT

N

Long term 200 Short term 400

Crush

N/10cm

Long term 3000 Short term 5000

Application

Excellence rodent resistence

Anti-torsional

Fiber to home

Tensile

Horizontal wiring

Duct

Vertical wiring

Direct-buried

Base station stretching

Overhead pipeline

Equipment room deployment

100% Waterproof

Field deployment

100% Fireproof

Fiber properties

Fiber size

mm

0.60±0.05

Inner sheath material

/

LSZH/PVC/HYTREL/NYLON

Color-coded

1

2

3

4

5

6

7

8

9

10

11

12

Blue

Orange

Green

Brown

Gray

White

Red

Black

Yellow

Purple

Pink

Dark green























Other information
