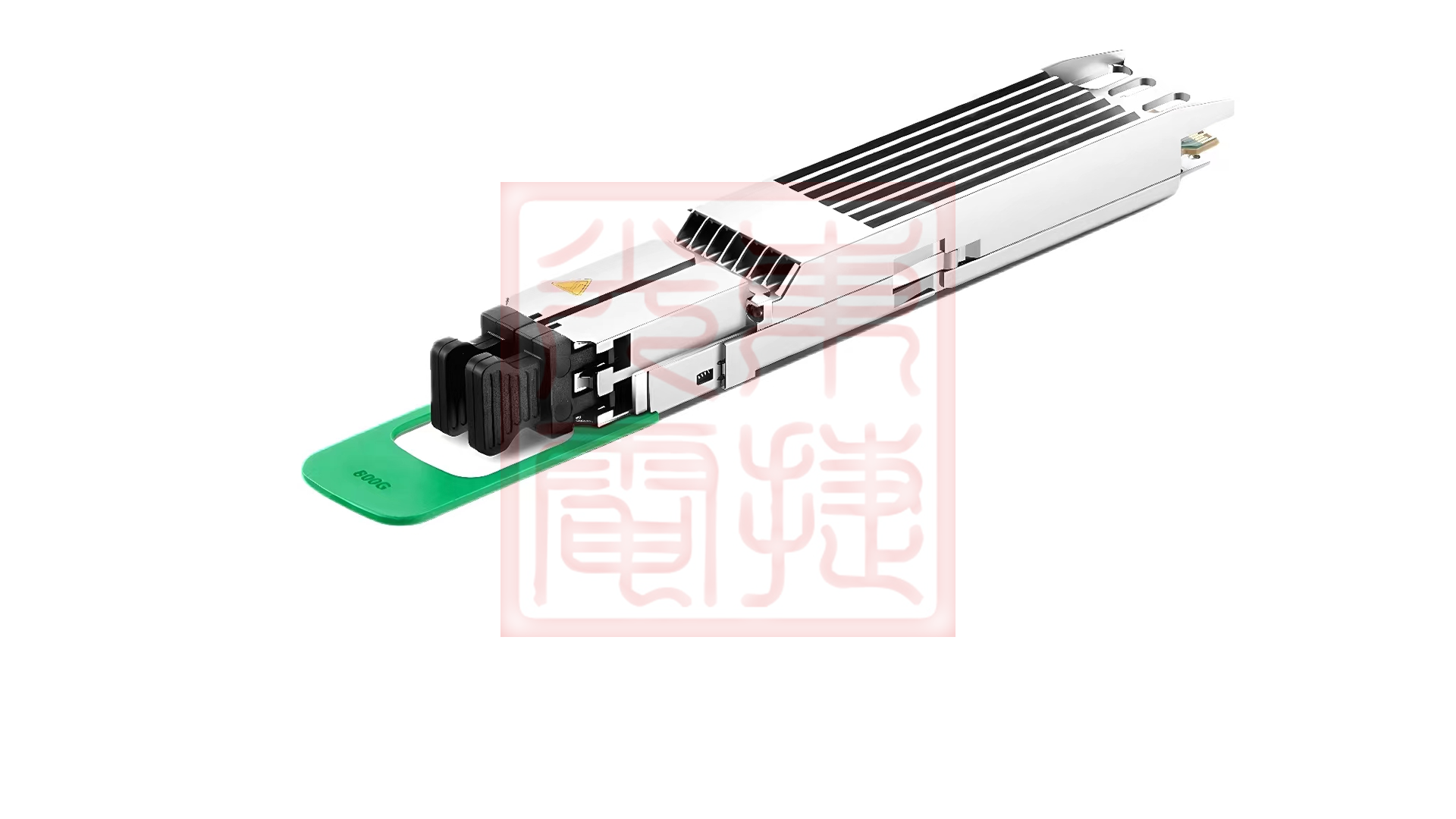

400GBASE-DR4 QSFP112 single mode optical module PAM4 1310nm 500m DOM MTP/MPO-12 APC-Accessories

Back to list 400GBASE-DR4 QSFP112 single mode optical module PAM4 1310nm 500m DOM MTP/MPO-12 APC

1. This module supports up to 500m single-mode link length with MTP/MPO-12 connector.
2. Complies with QSFP112 MSA, CMIS 5.0 interface and 400GAUI-4 standards.
3. Has built-in digital diagnostic monitoring (DDM) function, allowing real-time operating parameter access.
4. Suitable for 400G Ethernet and data center interconnect applications.

Model name	QSFP112-DR4-400G
Package	QSFP112
Wavelength	1310nm
Interface	MTP/MPO-12(APC)
Transmitter type	EML
Transmit power	-2.9～4.0dBm
Power budget	3dB
Power consumption	≤10W
Data diagnosis(DDM/DOM)	Support
CDR(Data Clock Recovery)	Transmit and receive
Wire size	G.652/9um
Technical Agreement	IEEE Std 802.3ck,QSFP112

Cable performance
Application
Fiber properties
Color-coded
Other information

Cable performance

Model name	QSFP112-DR4-400G	Brand	DongJie
Package	QSFP112	Maximum transmission rate	425Gbps (4x106.25Gb/s)
Wavelength	1310nm	Maximum transmission distance	500m
Interface	MTP/MPO-12(APC)	Fiber type	Single mode
Transmitter type	EML	Receiver type	PIN
Transmit power	-2.9～4.0dBm	Receive power	-5.9～4.0dBm
Power budget	3dB	Modulation	4x 106.25G PAM4
Power consumption	≤10W	Extinction ratio	>3.5dB
Data diagnosis(DDM/DOM)	Support	Commercial temperature range	0～70℃(32～158°F)
CDR(Data Clock Recovery)	Transmit and receive	Built-inFEC	No
Wire size	G.652/9um	Packaging technology	BOX
Technical Agreement	IEEE Std 802.3ck,QSFP112	Warranty	5Years

Application

Model name	QSFP112-DR4-400G	Brand	DongJie DJ
Package	QSFP112	Maximum transmission rate	425Gbps (4x106.25Gb/s)
Wavelength	1310nm	Maximum transmission distance	500m
Interface	MTP/MPO-12(APC)	Fiber type	Single mode
Transmitter type	EML	Receiver type	PIN
Transmit power	-2.9～4.0dBm	Receive power	-5.9～4.0dBm
Power budget	3dB	Modulation	4x 106.25G PAM4
Power consumption	≤10W	Extinction ratio	>3.5dB
Data diagnosis(DDM/DOM)	Support	Commercial temperature range	0～70℃(32～158°F)
CDR(Data Clock Recovery)	Transmit and receive	Built-inFEC	No
Wire size	G.652/9um	Packaging technology	BOX
Technical Agreement	IEEE Std 802.3ck,QSFP112	Warranty	5Years

Fiber properties

Model name	QSFP112-DR4-400G	Brand	DongJie DJ
Package	QSFP112	Maximum transmission rate	425Gbps (4x106.25Gb/s)
Wavelength	1310nm	Maximum transmission distance	500m
Interface	MTP/MPO-12(APC)	Fiber type	Single mode
Transmitter type	EML	Receiver type	PIN
Transmit power	-2.9～4.0dBm	Receive power	-5.9～4.0dBm
Power budget	3dB	Modulation	4x 106.25G PAM4
Power consumption	≤10W	Extinction ratio	>3.5dB
Data diagnosis(DDM/DOM)	Support	Commercial temperature range	0～70℃(32～158°F)
CDR(Data Clock Recovery)	Transmit and receive	Built-inFEC	No
Wire size	G.652/9um	Packaging technology	BOX
Technical Agreement	IEEE Std 802.3ck,QSFP112	Warranty	5Years

Color-coded

Other information
